| Name: | Hanging Chain Type Shot Blasting Machine |
|---|---|
Product Description
Q38/Q48/Q5810 Hanging chain type shot blasting machine / Continuous hanging overhead chain type shot blasting machine
1.Monorail shot blasting machine introduction

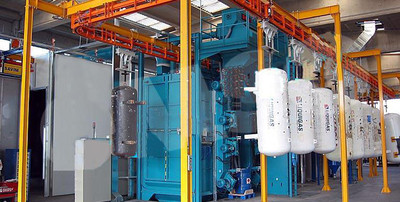

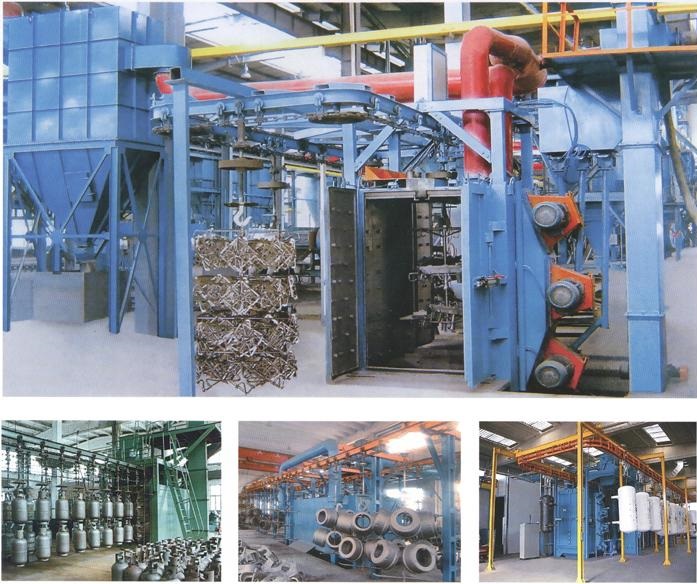

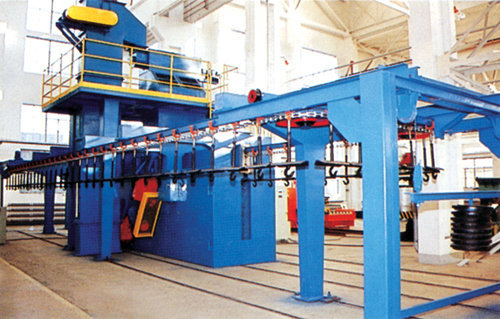

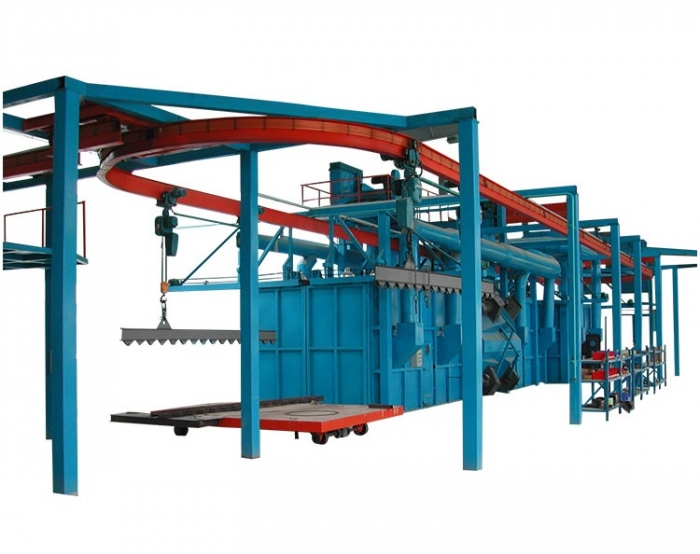

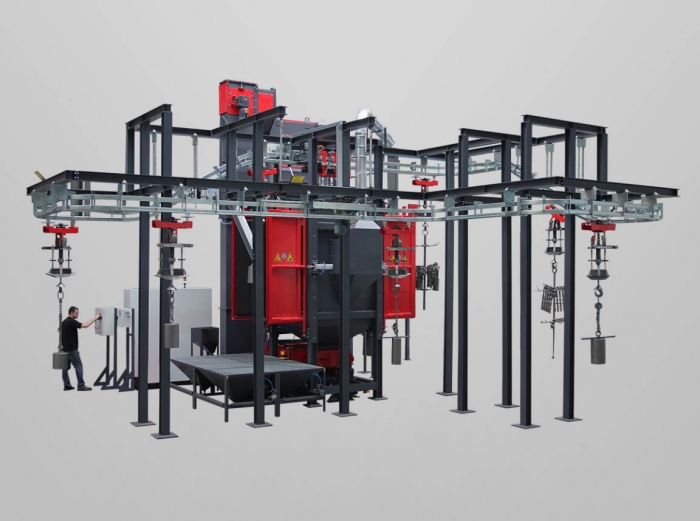

Monorail shot blasting machine is a specially designed machine for cleaning aluminum alloy parts. Operators load the work piece in front of the pneumatic door, and the hook conveyor transport workpiece into blasting chamber. The rotation mechanism makes the hook rotate in the blasting chamber.
The hook can also move back and forth in the chamber.Two sets of blast turbines will give thorough blasting to workpiece. After blasting, the hook conveyor transports the hook out of the chamber from the other pneumatic door and moves to next step. It is a continuous work process, and can be connected the whole production line or used separately.
2.Feature of the monorail shot blasting machine
A. Casting surface cleaning and strengthen
B. Thick steel surface rust removal
C. PLC control , can achieve automatic operation
D. Deburring, deflashing and Cosmetic finishing
E. When production requires dictate batch processing
F. Small to medium size castings, fabrications and heat-treated parts
G. Suitable for the unfavorable impact of long and thin, thin wall parts cleaning
3.Technical Parameter of the monorail shot blasting machine:
| Item Model | Q382C | Q383C | Q384C | Q483H | Q485H |
| Productivity(hook/h) | 35-55 | 38-50 | 60-120 | 20 | 30-40 |
Hook running speed(m/min) |
0.35-3 | 0.35-3 | 0.35-3 | 3.0-8.0 | 3.0-8.0 |
Loading capacity of single hook(kg) |
240 | 300 | 400 | 300 | 500 |
Hook spacing(mm) |
600-800 | 600-800 | 600-1000 | 600*1000 | 600-1000 |
Abrasive flow rate(kg/min) |
4*200 | 4*250 | 6*250 | 2*250 | 4*250 |
Lifting capacity(t/h) |
45 | 60 | 90 | 30 | 60 |
Separating capacity(t/h) |
45 | 60 | 90 | 30 | 60 |
Abrasive diameter(mm) |
Φ0.5-2 | Φ0.5-2 | Φ1.5-3 | Φ1.5-2.5 | Φ1.5-2.5 |
Abrasive initial filling capacity(mm) |
1200 | 1500 | 2000 | 1100 | 2000 |
Ventilation capacity(m3/h) |
8000 | 10480 | 14500 | 5000 | 10480 |
Chamber dimension(mm) |
5000*1800*3200 | 5000*2200*2600 | 6000*2600*3000 | 2900*1800*3200 | 5000*2600*2900 |
Overall dimension(mm) |
Φ(500-700)*1600 | Φ(500-700)*1600 | Φ(500-850)*1900 | Φ(500-900)*1600 | Φ(500-900)*1600 |
Workpiece dimension(mm) |
116000*2700*6450 | 11810*3200*7250 | 15300*3700*7700 | 11450*3100*6450 | 9450*3700*7250 |
Pit depth(mm) |
no pit depth | ~1800 | ~2100 | no pit depth | ~1800 |
Approx.total power(kw) |
73.1 | 82.8 | 131.7 | 52.8 | 83.15 |
Item Model |
Q4810H | Q583H | Q585H | Q5810H |
Productivity(hook/h) |
40-60 | 40 | 40 | 40 |
Hook running speed(m/min) |
3.0-8.0 | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Loading capacity of single hook(kg) |
1000 | 300 | 500 | 1000 |
Hook spacing(mm) |
700-1400 | 500-900 | 500-1000 | 500-1300 |
Abrasive flow rate(kg/min) |
6*250 | 4*250 | 6*250 | 6*330 |
Lifting capacity(t/h) |
90 | 60 | 90 | 120 |
Separating capacity(t/h) |
90 | 60 | 90 | 120 |
Abrasive diameter(mm) |
Φ1.5-2.5 | Φ1.5-2.5 | Φ1.5-3 | Φ1.5-2.5 |
Abrasive initial filling capacity(mm) |
3000-4000 | 2000 | 2000 | 4000 |
Ventilation capacity(m3/h) |
14500 | 10480 | 14500 | 18000 |
Chamber dimension(mm) |
3062*2600*3000 | 3200*2200*2800 | 3200*2400*3000 | 3200*2800*3800 |
Overall dimension(mm) |
Φ(6001300)*1900 | Φ(400-800)*1600 | Φ(400-800)*1900 | Φ(400-1200)*2200 |
Workpiece dimension(mm) |
9450*3700*7700 | 13250*3400*7250 | 13250*4200*7700 | 17650*6625*8300 |
Pit depth(mm) |
~2100 | ~1800 | ~2100 | ~2400 |
Approx.total power(kw) |
114.72 | 83.5 | 73.15 | 188 |
