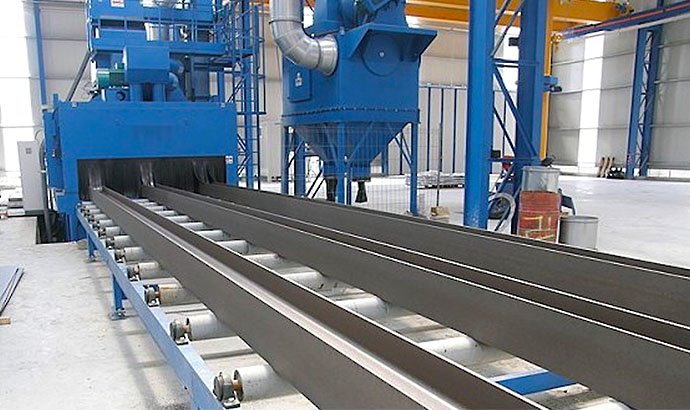

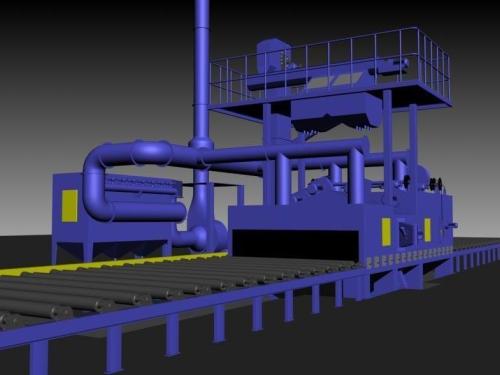

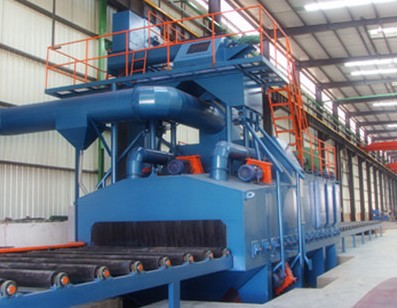

Name:Q69 Series Through Type Roller Conveyor Shot Blasting Machine for H Beam, Steel Plate, Profile,Marble, Stone

Product Description

Roller conveyor through type shot blasting machines are used to remove scale and rust from metal profiles, sheet metal components, stone, marble. By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.



Item

QH698

QH6912

QH6915

Q6920

Q6925

Q6930

Q6940

Effective cleaning width (mm)

800

1200

1500

2000

2500

3000

4000

Dimension of inlet opening(mm)

800*1600

1200*2000

1500*2500

2000*400

2500*800

3000*800

4000*400

Length of cleaning pieces (mm)

1200-12000

1200-6000

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

Roller speed(m/min)

0.5-4

0.5-4

0.5-5

0.5-4

0.5-4.5

0.5-4

2-8

Abrasive flow rate(kg/min)

8*120

4*250

4*250

6*250

6*250

6*360

8*360

Abrasive initial filling (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjustable height(mm)

4000

200

350

450

600

850

900

Ventilation capacity(m3)

22000

17560

19000

19550

27758

28050

38000

Outline dimension(mm)

25017*4500

*9015

12180*4250

*7095

15200*5370

*6797

30650*6850

*9095

31200*8070

*7500

44042*6385

*7758

45000*7830

*11117

Thickness of cleaning steel plate(mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Pit depty(mm)

1937

1616

2257

2800

2353

2800
