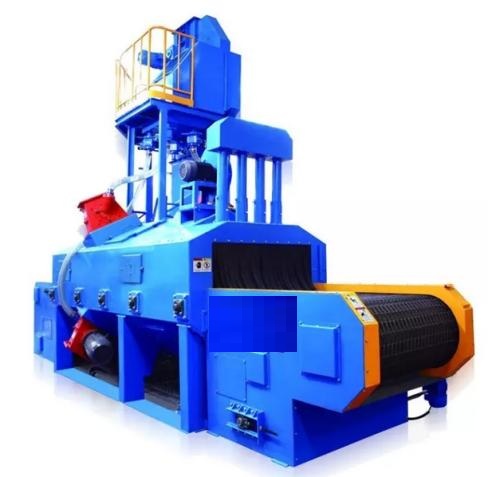

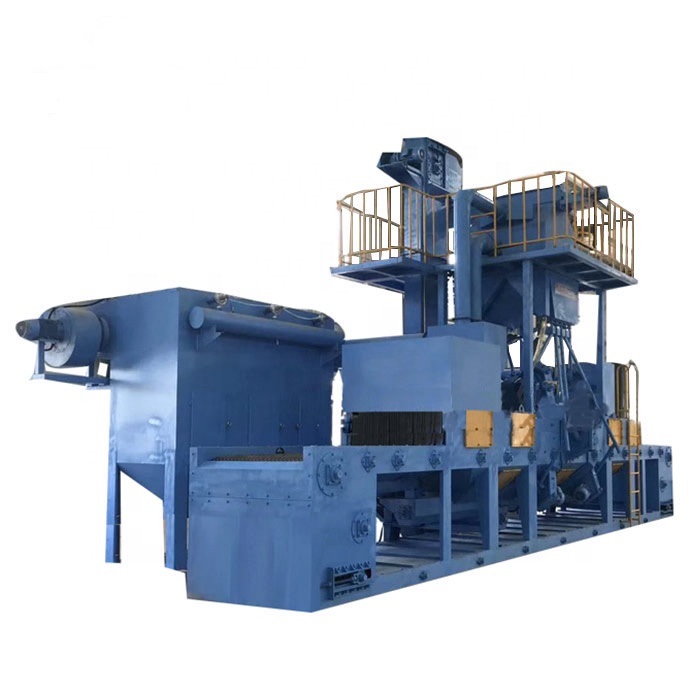

Automatic Continuous Wire Mesh Conveyor Belt Shot Blasting Cleaning Machine

Wire Mesh Belt Shot Blasting Machine / Sand Blasting Machine / Abrasive Blaster is mainly used for automatic, aerospace railway and other machine manufacturing industry.

The Steel Wire Mesh Shotblasting Machine especially suitable for the surface of the thin walled castings,and the fragile thin walled aluminum or cast iron,ceramics,and other small parts.

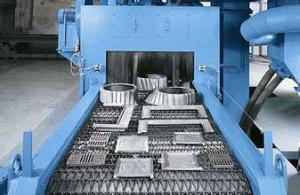

This machine is a pass through type wire mesh belt automatic shot blasting cleaning equipment. It is suitable for sheet metal parts, die castings, flat workpiece , small and medium complex parts etc. The shot blasting equipment can clean the workpiece surface, increase the paint film adhesion, improve the surface quality and anti-corrosion effect. With many years of research and development and cooperating with Germany company, our company developed the high power direct coupled shot blast wheel from 7.5KW to 75KW which is the top technology of blast wheel in Asia. The configuration, quality and performance of this equipment have been a leader in this line.

Key Benefits of Mesh Belt Shot Blasting Cleaning Machine

1. Uniform blast cleaning effect, perfectly clean castings.

2. Deformation-free cleaning.

3. Optimum exploitation of energy.

4. Adjustable blasting intensity to suit different types of castings.

It is especially suitable for flat parts and parts vulnerable to impact

Smooth and safe transportation of various sizes of workpiece in continuous production

Provide efficient shot blasting operation for very complex parts

Features of Mesh Belt Shot Blasting Equipment

1. Upper rotating scalping drum

2. Full internal cast wear plates lining

3. Modern and functional design to ensure a cost effective concept

4. The machine consist of  "ready-to-operate" modules which can easily be transported and mounted

5. Service and access platforms are integrated in the different modules

6. Compact, space saving design and low height facilitates integration of the machine into production lines

7. Air blowers

Applications of Mesh Belt Shot Blasting Machine

Mesh Belt ShotBlasting Machine provide high volume production and cost effective performance for deburring, cleaning, descaling, deflashing or etching. These systems are extremely versatile for efficient blast coverage and built to accommodate medium to large castings, heat treated parts, automotive wheels, ferrous and non-ferrous castings, weldments, fabrications and more.

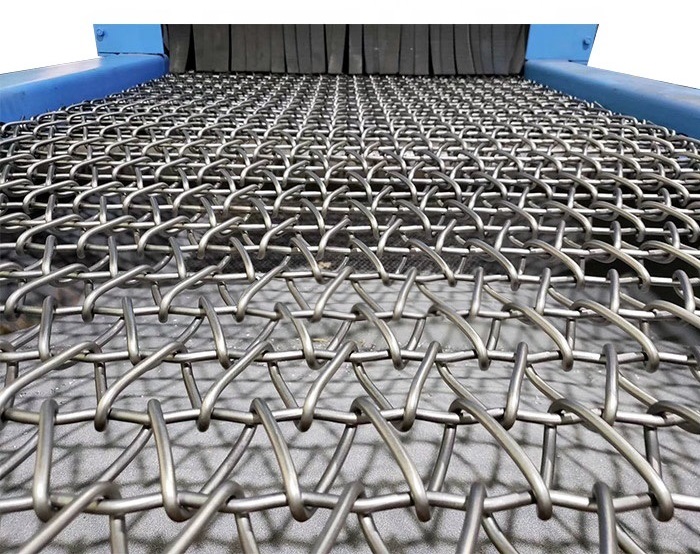

Wire Mesh Belt Shot Blasting Machines are used for desanding of flat, thin walls and fragile parts of iron and aluminium alloys what requires specific demands on the shot blasting machine as well as shot blasting process. Heart of the shot blasting machine, which is provided with 4 or 8 impeller wheel turbines in different power drive, is a circulating wire mesh conveyor belt made of manganese steel wire.

Models and Specification:
