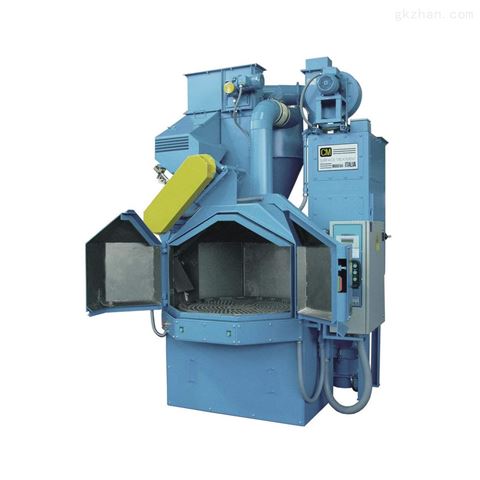

Q35 Series Turntable Shot Blasting Machine Metal Surface Treatment

Rotary table shot blasting machine is blast cleaning equipment for precise casting and forging parts especially in auto industry.

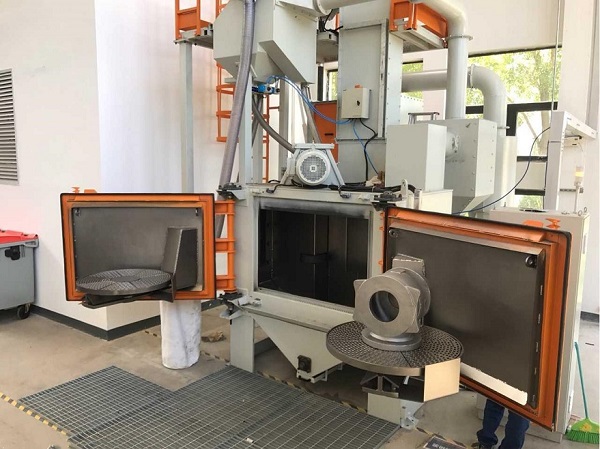

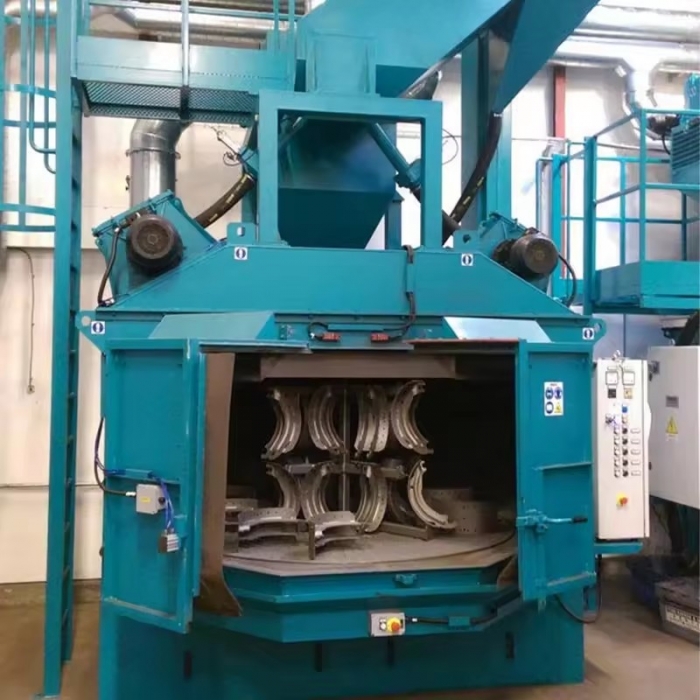

Rotary table disc rotates with work pieces on it. Blasting wheels on top blast steel shots and grits on work pieces. Table disc is resistant casting alloy with holes to let used steel shots and grits down to bottom screw conveyor for recycling. Rotary turn table shot blaster is also called table or swing table shot blasting machine.

Introduction of Rotary Table Shot Blasting Machine

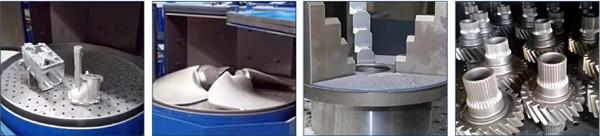

Rotating plate shot blast machine is suitable for surface strengthening of compressed work piece, the work piece is in the turntable and is blasted from vertical direction. Q35 series shot blast machine is suitable for surface rust removal and strengthening of engine connecting bar, gear, shell cover wall, clutch friction part.

Technical Parameters

Working principle

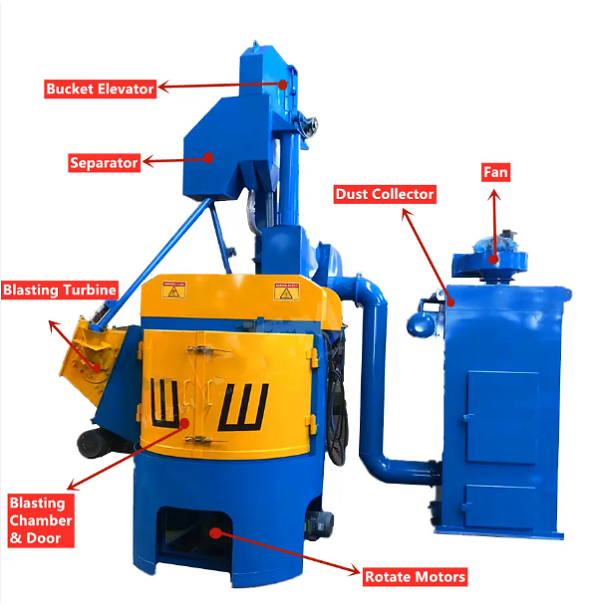

The machine consists of a rotating turntable on which the workpiece is placed. The turntable rotates at a controlled speed while a or two blasting wheel located above the turntable pushes abrasive media onto the workpiece surface, abrasive media such as steel shots or sand are accelerated by the blasting wheel and impact the surface with force, effectively removing contaminants. Impurities and waste abrasive are then collected and separated through a system of pipes and filters. Rotary table shot blasting machines are ideal for cleaning, stripping and preparing surfaces for various processes such as painting, coating or welding.Thanks to the adjustable blasting mode and variable turntable speed, they can handle different types and sizes of workpieces. These machines are known for their efficiency, productivity and reliability.

Main features

Efficient and Thorough Cleaning: The high speed of the abrasive media ensures effective removal of surface contaminants without damaging the workpiece.

Cost-effective: Continuous circulation of grinding media and automatic recovery system reduce material waste and reduce operating costs.

Increased productivity: The turntable system precisely controls the machine's movement, ensuring complete coverage of the workpiece and reducing processing time.

Environmentally Friendly: The dust collection system minimizes environmental pollution by capturing and filtering generated dust and debris.
