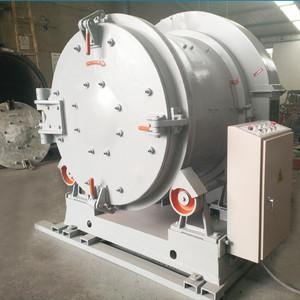

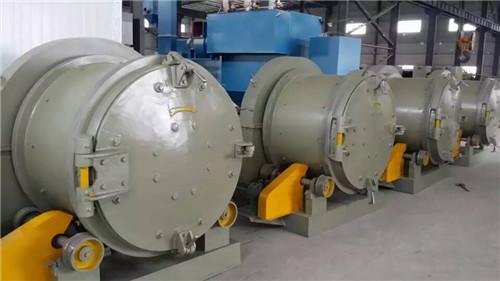

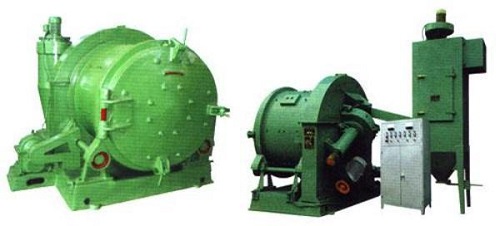

Name: | Rotary Drum Shot Blasting Machine |
---|---|
Product Description
The machine is suitable for surface rust
removal of work pieces in medium or small quantity batch production with many
varieties. Put the work pieces into the barrel and blasting it in side way.
The high-speed impeller throws the
abrasive to the continuous tumbling castings or forgings in barrel, to remove
the greensand or scales on the surface. It cleans evenly and its productivity
is high, so it is suitable for cleaning the small work pieces whose weight are
under 15g in medium or small-scale casting or forging workshops.
No |
Item |
Q3110BI |
Q3110BII |
Q3113BI |
Q3113BII |
|
1 |
Diameter of rolling drum |
mm |
1000 |
1000 |
1300 |
1300 |
2 |
Loading capacity |
kg |
300 |
300 |
600 |
600 |
3 |
Productivity |
kg/h |
600-1500 |
600-1500 |
2500-3500 |
2500-3500 |
4 |
Power(no dust collector) |
kw |
9.7 |
11.9 |
14.5 |
16.3 |
5 |
Max weight of workpiece |
kg |
15 |
15 |
30 |
30 |
6 |
Speed of rolling drum |
r/min |
3 |
3 |
2.5 |
2.5 |
7 |
Abrasive flow rate |
kg/min |
120 |
120 |
160 |
160 |
8 |
Ventilation capacity |
M3/h |
800 |
2000 |
2000 |
2800 |
9 |
Outline dimension |
mm |
2078*2458*1861 |
3870*2458* 3370 |
2550*2341*2250 |
4362*2341* 2250 |
