Name:	H Beam Shot Blast Machine

Product Description

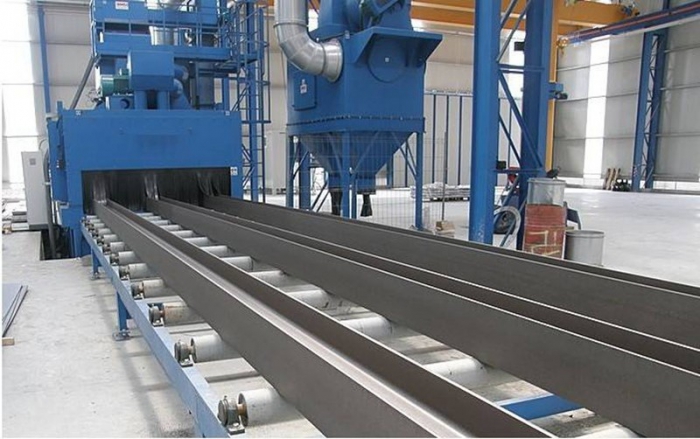

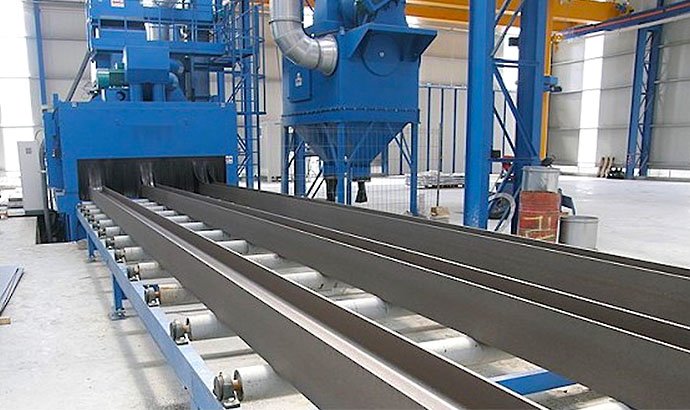

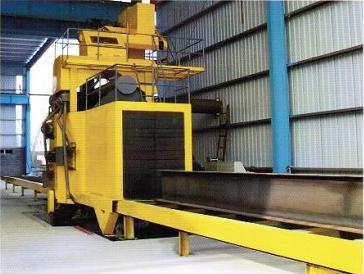

H Beam Shot Blasting Machine

Equipment: rollers conveyor, blasting chamber, blast wheel, abrasive recycle system, separator , cleaning chamber, dust collector, PLC control system etc.

Beam shot blasting machine is mainly composed of such stage as preheating,shot blast cleaning,painting and stove,etc,It is suitable for the surface de-rusting and painting craft for steel plates and sections in such industries as ship-making,automobile making,locomotive vehicle,bridge,and machinery.

Item	Q6910	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
Cleaning Width(mm)	1000	1200	1500	2000	2500	3000	4000
Inlet Size(mm)	1000*260	1200*400	1500*400	2000*400	2500*800	3000*800	4000*400
Length(mm)	1200-12000	1200-12000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
Conveying Speed(m/min)	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
Thickness(mm)	4-60	4-60	4-60	4-60	4-60	4-110	4.5-100
Blast Capacity(kg/min)	4*250	4*250	4*250	4*250	6*250	6*360	8*360
Initial Capacity(kg)	4000	4000	4000	4500	4500	8000	11000
Rolling Brush(mm)	No	200	350	450	600	850	900
Air Capacity(m3/h)	12000	17560	19000	19550	27758	28050	38000
Total Power(kw)	78	78.3	113.5	156.6	224.55	204.8	293.6
