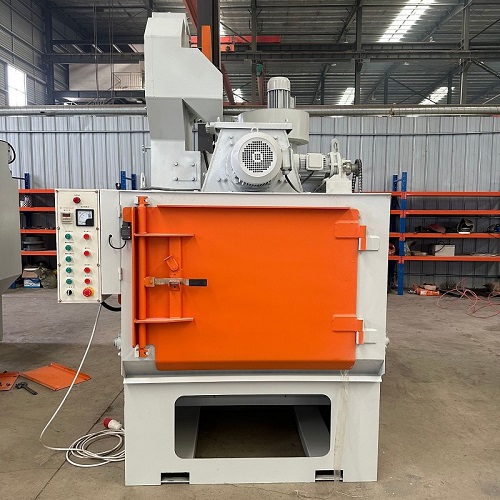

Integrated Q326 Rubber Tumble Crawler Shot Blasting Machine

Q326 tumble belt integrated shot blasting machine is designed as an ideal processing solution for steel, aluminum, brass, zamak, cast iron or bronze parts, Pressed parts in steel or brass, Forged parts, Heat-treated parts, Springs, Various mechanical parts, and for deflating thermoset plastics.


Q326 tumble belt type all-in-one shot blasting machine has the advantages of advanced design, reasonable structure small energy consumption and high efficiency.

Integrated Q326 belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement, the whole surfaces of the parts are exposed to the shots thrown by the turbines.

Features of Q326 combine shot blasting equipment

Our belt shot blasting machines are designed to process a variety of parts that can be tumbled.

The endless conveyor belt and lateral round place creates a trough in which parts are treated.

The number and power of the turbines are chosen according to the requirement production rate.

Optional PLC control system, stable quality and easy to get support from local.

Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.

No-pit, easy for install and move and save cost.

A high volume of parts can be processed in a small working area.

All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.

Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.

Working principle of the rubber crawler belt Q326 integrated shot blasting machines:

workpieces are added into the blasting chamber, the door is closed, the machine is started and reverses. At the same time, the abrasives thrown at high speed by the blast turbine form a fan beam, which is evenly hit on the surface of workpieces to clean. The thrown abrasives and sand particles flow from the holes of rubber belt into the screw conveyor at the bottom and are sent into the bucket elevator through screw conveyor, lifted into the separator by the elevator. The dusty air is sucked into the dust collector by the fan and filted to become clean air, which is discharged into the atmosphere. The dust is blown into the dust box at the bottom of the dust collector, and the user can periodically remove it. The waste sand is discharged from the waste pipe and can be reused by the user. The mixture of the abrasive and sand is recycled into the blasting chamber by the recycling tube, and reused after separation by the separator. The layout of the blast turbine is simulated by the computer 3D design. The empty ejection is minimized, thereby maximizing the utilization of abrasives and reducing the wear on protective plates of blasting chamber.

Tumble shot blasting machine is a piece of equipment that performs surface treatment and cleaning on a variety of materials, especially metals, by propelling abrasive media to the surface. This shot blasting integrated machine don't need assemble, connect industrial electricity, adding some abrasive, then start work.
