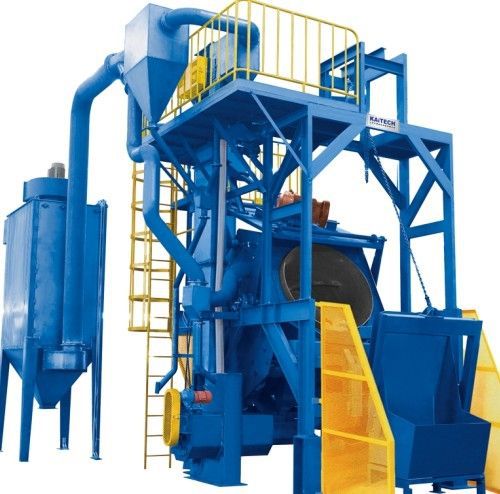

Automatic Inclined Rolling Drum Shot Blaster Equipment Tilt Rotary Barrel Shot Blasting Machine

Inclined Rolling drum barrel type shot blasting machine is one of the standard series cleaning equipment.

Tilt drum shot blast machine designed for Shot Blast Cleaning of small or medium size iron, steel, alloy and non-ferrous castings, forgings, heat treated parts, pressings and fabrications at the lowest possible cost. The Tilting Rotary Drum Shot Blasting Machine / Abrasive Blasting Equipment is the choice for blast cleaning small parts that can be batched and tumbled. A cement mixer type of tumbling chamber presents parts to the blast wheel providing a simple, yet effective blast cleaning solution. Rotary drum can be configured to provide fully automated processes.

Inclined drum type shot blasting equipment with unique drum shaking structure, when it is in shot blast cleaning, the roller will rotate and shake up and down in the same time, so products in the roller are completely agitated, achieve even cleaning effect. Shot blasting chamber adopts unique structure, suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way. The high speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces in medium or small-scale casting or forging workshops.

Features:

1. High degree of automation: One-button start, automatically complete the cleaning work of loading - shot blasting - unloading. Save manpower and improve work efficiency.

2. Tilting barrel shot blasting equipment operates continuously and reliably: The inclined drum loads the workpiece and runs, and projectiles hit the workpiece to complete the cleaning task. The structure is simple and reliable without intermediate links. Except for the wearing parts of the throwing head, other parts of the equipment are not easy to be damaged, and the follow-up cost is extremely low.

3. Tilt drum shot blasting equipment drum is maintenance-free: The inclined drum is made by a special process of δ12mm rolled Mn13 steel plate, and the door cover guard is made of δ6mm rolled Mn13 steel plate, with a service life of more than 15,000 hours.

4. High-strength silk belt, wear-resistant hopper: The main component of the projectile circulation system is the elevator belt, which is selected from the high-strength silk belt, which has a long service life and is not deformed. The elevator hopper is made of manganese plate and has a long service life.

5. Guarantee of the reliability of continuous operation of the shot blasting equipment: Each running part of the equipment is equipped with speed and position detection. Such as: lifting, separation, and screw are equipped with speed detection, and drum rotation and swing are equipped with position detection to ensure the normal operation of the equipment.
