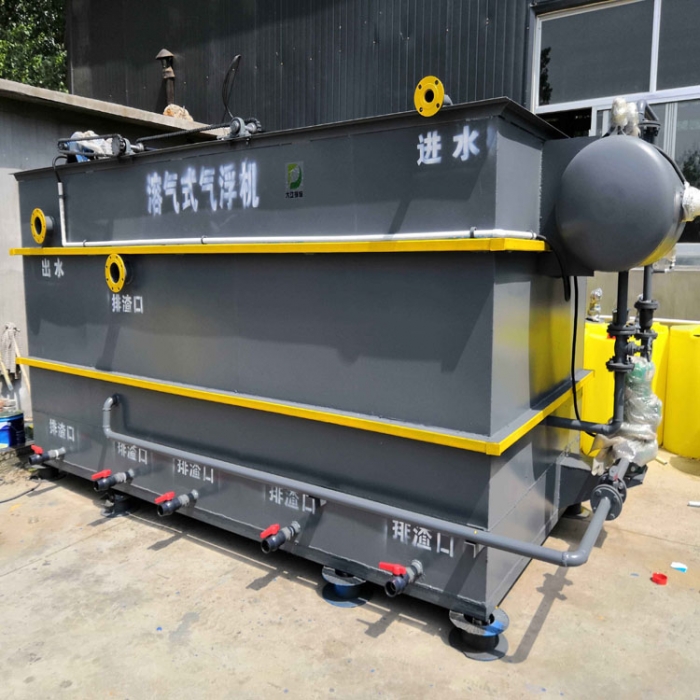

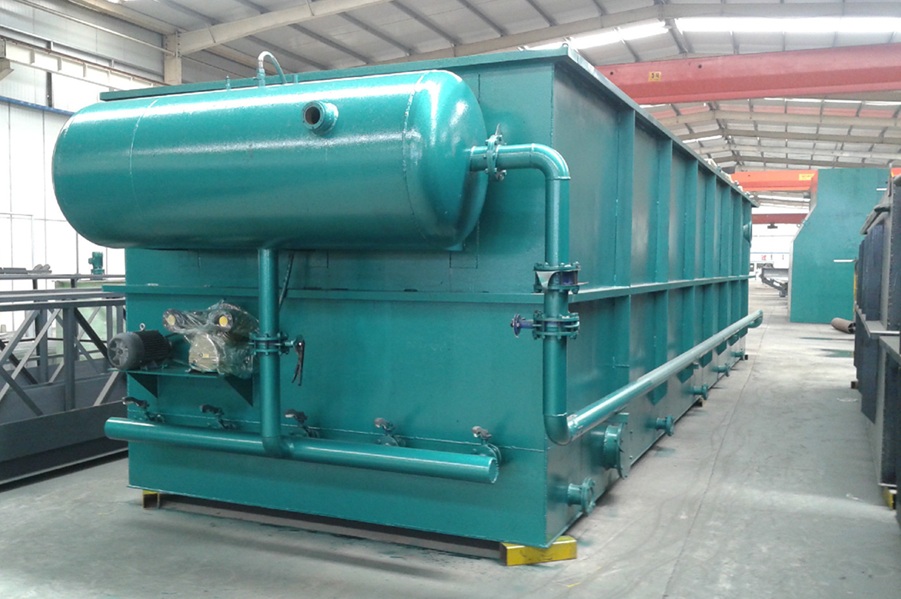

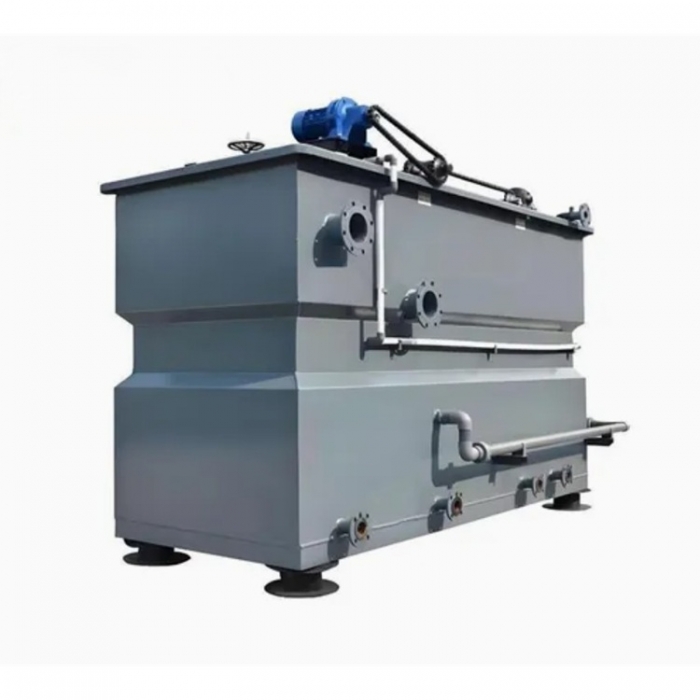

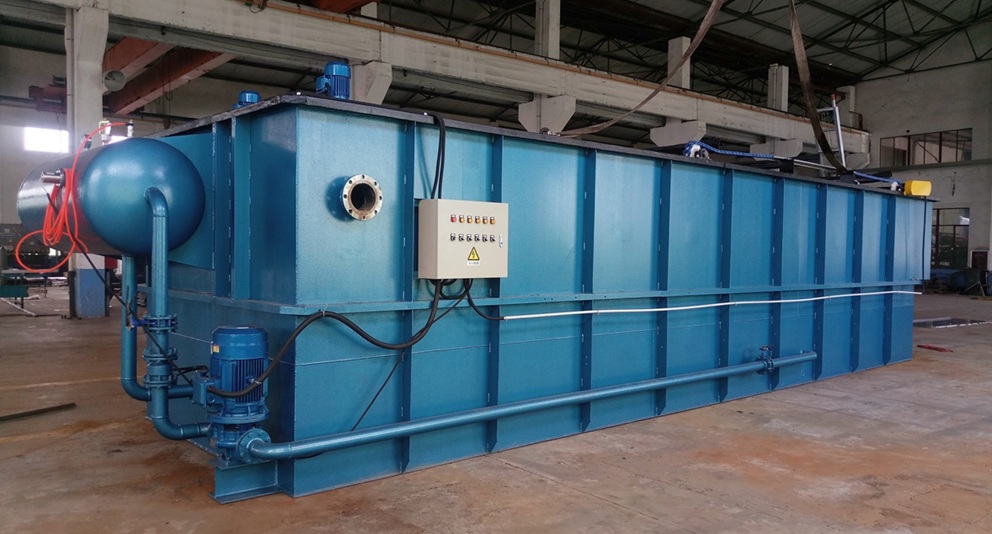

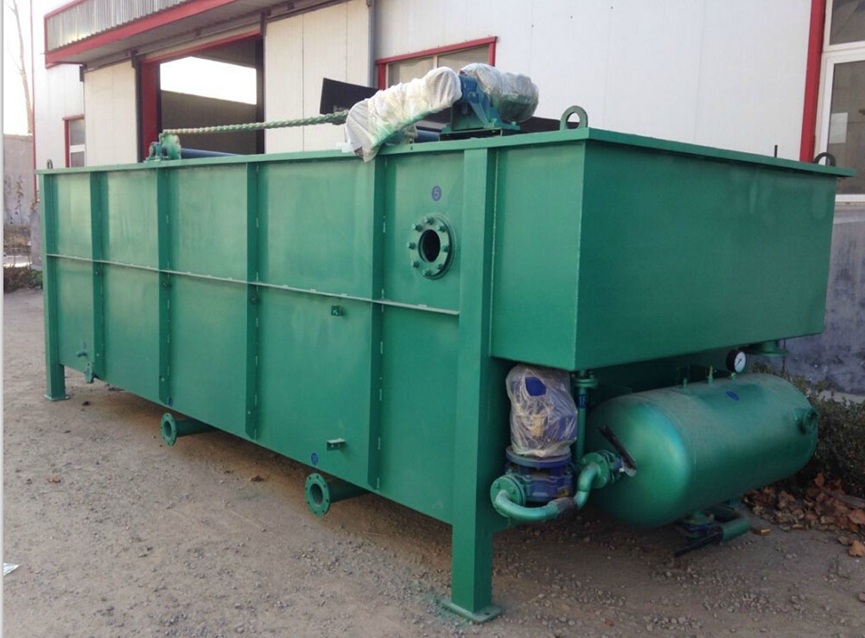

DAF Dissolved Air Flotation Sewage Treatment Wastewater Purification Equipment

Brief introduction of DAF machine

Dissolved air flotation is one of the most advanced air flotation equipment in the world at present, it is designed to remove industrial and city sewage grease, jelly and suspened solid. According to different sewage, the grease removal rate can reach 95% above, most of the suspended solid can be removed, also, when add folcculant and intermixture, the COD and BOD removal rate can reach 50% above.

DAF Unit is engineered for superior solid-liquid separation. This system effectively removes Total Suspended Solids (TSS), Chemical Oxygen Demand (COD), and Oils/Grease (FOG) from various industrial sewages. Whether for a Paper Mill, Textile Plant, or Food Processing facility, Automatic DAF Machine ensures compliance with environmental discharge standards. Built with corrosion-resistant materials (SS304/Carbon Steel), it offers a compact footprint, low energy consumption, and stable operation for your water purification projects.

Dissolved air flotation (DAF) is a proven and effective physical/chemical technology for treating a variety of industrial and municipal process and wastewater streams. DAF systems are commonly used for the removal of oils & greases and suspended solids to meet a variety of treatment goals including:

1.Product recovery and reuse
2.Pretreatment to meet sewer discharge limits
3.Pretreatment to reduce loading on downstream biological treatment systems
4.Polishing of biological treatment effluent
5.Thickening of biosolids
6.Product recovery and reuse Pretreatment to meet sewer discharge limits
7.Pretreatment to reduce loading on downstream biological treatment systems Polishing of biological treatment effluent, thickening of biosolids

Feature:

1).Dissolved air pump edge bibulous the edge is inspiratory, pump pressurized mix within, gas to liquid efficient dissolving, small bubbles than 30 um.
2).Low voltage operation, the dissolved gas efficiency is as high as 99%, release rate as high as 99%.
3).Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect.
4).Dissolved gas water dissolving efficiency 80-100%, than traditional dissolved gas floating high efficiency three times.
5).Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.
6).Large treatment capacity, high efficiency, occupies less.
7).Technology process and equipment sample, easy to use and maintain.
8).Can eliminate sludge bulking.
9).When working, the aerator will send air to the water, can remove the surfactant and odour effectively. At the same time, aeration can add the dissolved air quantity in the water, which will provide advantages to follow-up units.
10).For low temperature, low UTN, algae-containing water, air flotation technology will be the best choose.

Work Principle of DAF machine

1. Add flocculant and intermixture into sewage.Air compressor send air to air tank
2. Pump send flocculating suspended wastewater to the pool.
3. Jet flow device take air to dissolving-air tank,the air will be forced to dissolve into water under 0.35Mpa pressure and forming dissolved air water.
4. The dissolved air water will be sent to air flotation tank.
5. When the press reduce suddenly,air will dissolve out the water and form vast microbubbles,then fully contact the flocculating suspended matter and float to the surface.
6. Surface sludge rollers will collect the solid on the water surface.removing SS and CODcr etc.

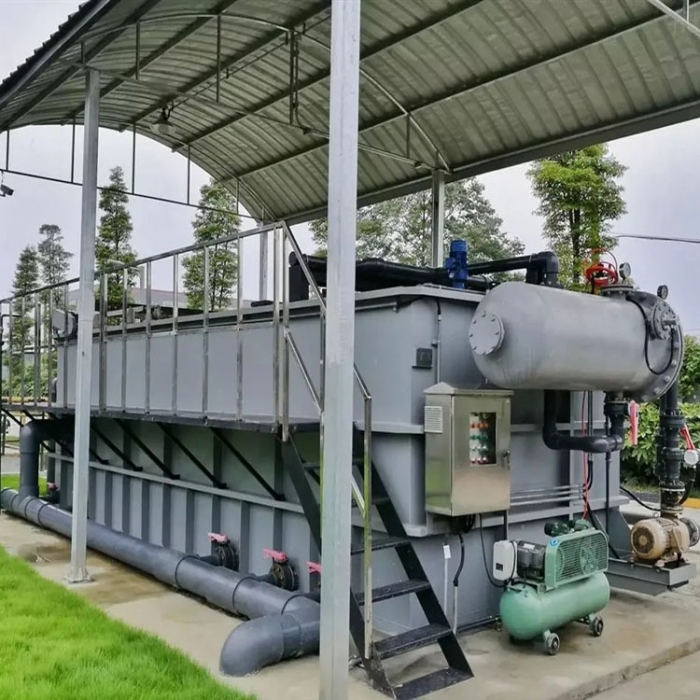

Main Structure of DAF machine:

1)Air flotation machine:steel structure, it is the main body and core of DAF, which inside is composed of releaser,uniform distribution device,sewage pipe,outlet pipe,sludge tank and scraper system etc.

2) Dissolved air system is mainly composed of dissolved air tank, air storage tank, air compressor and high pressure pump, dissolved tank is the critical parts of system, its function is realize water and air fully contact , speed up air dissolve, which is a closeness Withstand Voltage steel tank, its inside equip with baffle plate,sleeve, to speed up air and water speed, improve  dissolved air efficiency.

3) Chemical dosing system: metering pump, mixing motor, PE tank .

Applications

Industrial: Poultry processing, Meat processing, Laundries and textiles, Egg processing, Byproduct rendering, Pulp and paper, Plastics recycling, Dairy and milk products, Metal plating and finishing, Bakeries, Confectionaries, Food processing, Snack food processing, Beverage, Petroleum and petrochemical refining, Natural gas and petroleum fracking, Biochemical, Personal care products, etc.

Municipal: Waste activated sludge thickening, Biological solids clarification, Phosphorous removal, Algae removal, etc.
