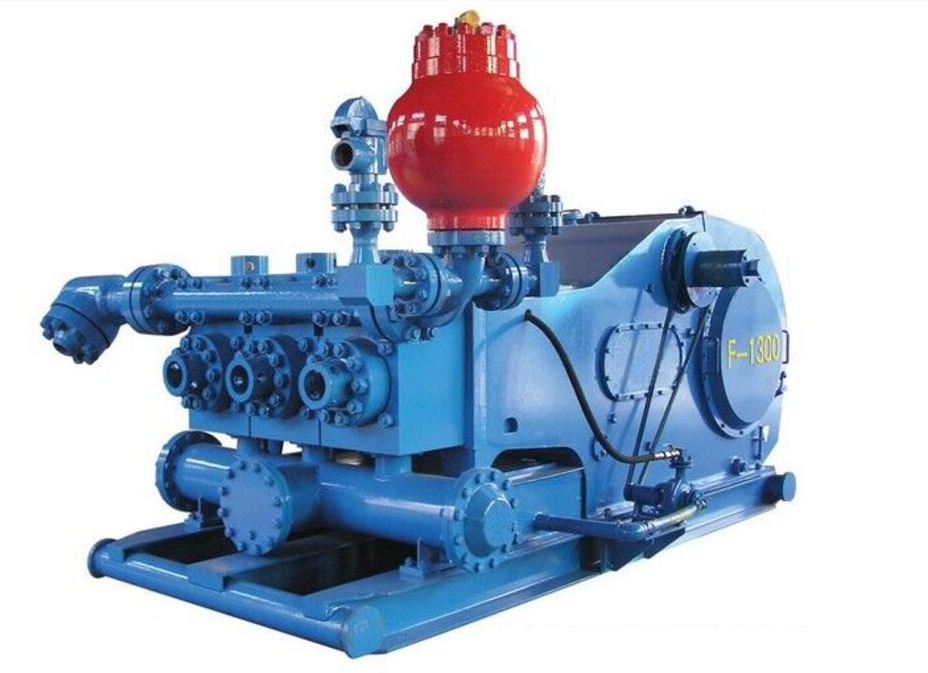

Petroleum Equipment F1300 Triplex Mud Pump for Oil Drilling

The Triplex Mud Pump for Oil Drilling is the most popular drilling mud pump used in oilfield drilling. Triplex Mud Pump is one of the most important equipments in the drilling operation which discharge high viscosity, heavy density and low sand contented fluid to well bottom in order to cool drill bit, flush well, crush the rock and take out debris.

A triplex mud pump is an essential component of modern drilling equipment used in the oil and gas industry for drilling wells. The primary purpose of the pump is to circulate drilling fluid (also known as drilling mud) through the wellbore to maintain pressure, cool and lubricate the drill bit, and carry the cuttings back to the surface. The triplex mud pump is designed to deliver a constant flow of highly pressurized mud, ensuring safe and efficient drilling operations.

As drilling equipment technology advances, the triplex mud pump has evolved to become more powerful, more reliable, and more efficient. Today's pumps are capable of producing pressures up to 7,500 PSI, allowing drillers to work in deeper and harder-to-reach formations. Moreover, the latest models feature advanced fluid end technology, which enhances durability, reduces maintenance costs, and extends the pump's lifespan significantly.

In summary, the triplex mud pump plays an indispensable role in modern drilling operations. It serves as the workhorse of the drilling rig, ensuring continuous circulation of drilling mud to keep the wellbore stable and productive. As the industry continues to advance, the pump will likely continue to evolve, becoming even more powerful, efficient, and reliable for drilling contractors around the world.

Features of series F1300 mud pump:

Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;

Forced lubrication combined with splash lubrication to make lubrication effect;

Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;

Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;

Durable fluid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.

F500, F800 and F1000 mud pumps has advanced structure, small size, reliable application and easy maintenance and repair. In order to reduce the labor intensity of drillers and facilitate on-site operation, the cylinder liner is designed to be loaded from the top rack on which a small crane is equipped for dismounting and replacing the cylinder liner.

The suction inlets of F1300 and F1600 mud pumps adopt 12" flanges.

F1300 and F1600 mud pumps use API 7# valve; the suction valve and discharge valve are interchangeable. Material for hydraulic cylinder is alloyed steel forging, and three hydraulic cylinders of each pump can be interchanged. Straight through hydraulic cylinder, namely, the structural design of valve-over- valve, has reduced the size of the cylinder but increased its volumetric efficiency. Chemical nickel-plating treatment can be carried out on the surface of the hydraulic cylinder at the request of users, so as to enhance its corrosion resistant property.

All of such components and parts as hydraulic cylinder, cylinder liner, piston, valve body, valve seat, valve spring, sealing element, valve deck and cylinder head of hydraulic end of the F1300 and F1600 mud pumps are interchangeable.

Technical specification:
