| Name: | Clutch Assembly Land and Offshore Oil Drilling Rig Equipment Accessories |
|---|---|
Product Description

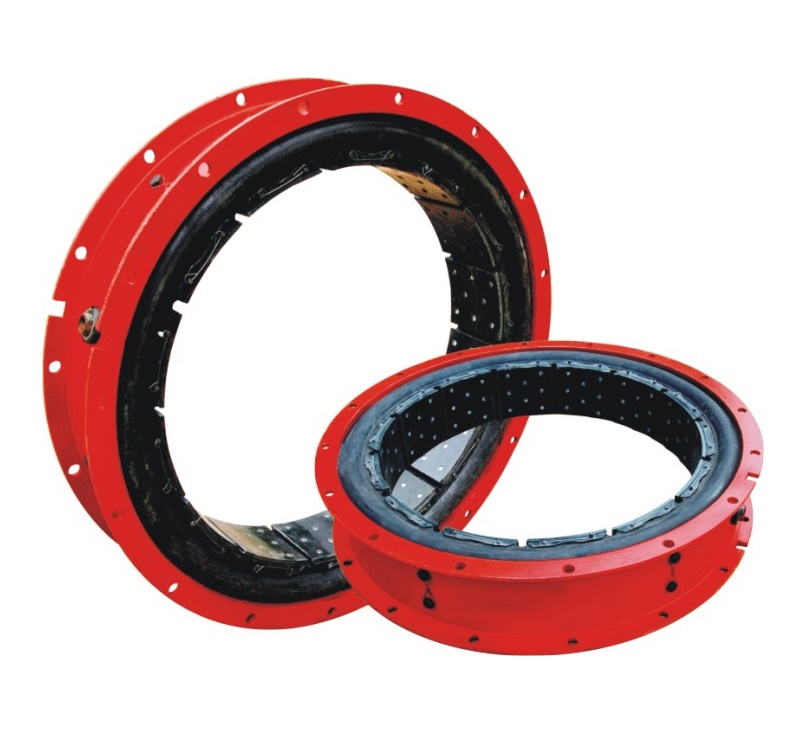

Clutch Assembly Land and Offshore Oil Drilling Rig Equipment Accessories
The standard type of clutch transmits torque through an air diaphragm. It has a simple structure, is easy to install, and is suitable for low-torque transmission.
Standard: SY/T 6760-2010 "Air Diaphragm Clutches for Petroleum Drilling Equipment."
Our company provide the following models of air diaphragm clutches and their accessories: LT300/100, LT500/125, LT600/125, LT700/200, LT700/135CBC, LT800/135.
The ventilated clutch is a high-performance air diaphragm clutch developed on the basis of the standard type. It has good heat dissipation, the diaphragm does not bear torque, engagement is smooth, disengagement is quick, is suitable for high-torque transmission, and has a long service life.
Standard: SY/T 6760-2010 "Air Diaphragm Clutches for Petroleum Drilling Equipment."
Our company provide the following models: AVB500/200, LT500/250T, AVB600/250, LT700/250T, LT700/135DY, LT800/250T, LT900/250T, LT1070/200T, AVB1120/300, LT1170/250T, AVB1250/300.
AVB600/250 | |||
图号 | 名称 | 数量 | 材料 |
T14-010.03 | 闸瓦 | 10 | ZL101 |
T14-010.01 | 侧板Ⅰ | 1 | 钢板16/Q235A |
T14-010.02 | 扭力杆 | 10 | 45 |
T14-010.04 | 钢圈 | 1 | Q235 |
T14-010.05 | 弹簧片 | 10 | 60Si2Mn |
T14-010.06 | 摩擦片 | 10 | 石棉摩擦材料 |
T14-010.07 | 侧板Ⅱ | 1 | 钢板16/Q235A |
T14-008.08 | 螺母M36×2 | 4 | Q235A |
GB3289.31-82 | 管塞G1/2 | 2 | |
气胎φ1185×φ246×26 | 2 | ||
GB32-89 | 螺栓M16×55 | 32 | 6.8级 |
GB6170-86 | 螺母M16 | 32 | 6.8级 |
GB93-87 | 弹簧垫圈16 | 32 | 65Mn |
T14-008.10 | 平头螺钉M12 | 4 | 45 |
GB6170-86 | 螺母M12 | 4 | 5级 |
GB93-87 | 弹簧垫圈12 | 4 | 65Mn |
T14-008.11 | 螺钉M10×30 | 100 | H62 |
GB6170-86 | 螺母M10 | 100 | 5级 |
GB93-87 | 弹簧垫圈10 | 100 | 65Mn |
LT965/305 | |||
图号 | 名称 | 数量 | 材料 |
T14-017.06 | 闸瓦 | 16 | ZL101 |
T14-017.01 | 钢圈 | 1 | 钢板24、20/Q235A |
T14-017.02 | 侧板 | 2 | 钢板24、20/Q235A |
T14-017.04 | 扭力杆 | 16 | 45 |
T14-018.03 | 弹簧片 | 16 | 60Si2Mn |
T14-017.05 | 摩擦片 | 16 | 石棉摩擦材料 |
T14-008.011 | 螺钉M10×30 | 160 | H62 |
GB6170-86 | 螺母M10 | 160 | 6级 |
115.33.03.00 | 气胎φ1146×φ1098×315 | 1 | |
GB93-86 | 弹簧垫圈10 | 160 | 65Mn |
T14-014.06 | 定位销M12 | 8 | 45 |
GB894-86 | 轴用卡簧 | 4 | 65Mn |
GB5782-86 | 螺栓M20×55 | 40 | 6.8级 |
GB6170-86 | 螺母M20 | 40 | 6级 |
GB93-86 | 弹簧垫圈20 | 40 | 65Mn |
LT1168/305 | |||
图号 | 名称 | 数量 | 材料 |
T14-018.06 | 闸瓦 | 16 | ZL101 |
T14-018.01 | 钢圈 | 1 | 钢板24、20/Q235A |
T14-018.02 | 侧板 | 2 | 钢板20/Q235A |
T14-018.04 | 扭力杆 | 16 | 45 |
T14-018.03 | 弹簧片 | 16 | 60Si2Mn |
T14-017.05 | 摩擦片 | 16 | 石棉摩擦材料 |
T14-008.011 |
|
