Bi-Metal Mud Pump Liner for Oil Drilling Equipment Accessories Petroleum Machinery Parts

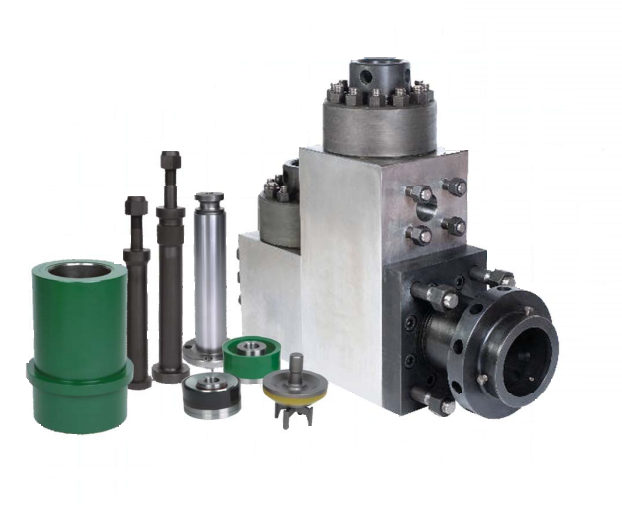

Mud pump is the "heart" of oilfield drilling system, and the mud pump cylinder liner is an important part of the hydraulic end of the mud pump, so the life of the mud pump cylinder liner directly affects the life of the mud pump. The working surface of the cylinder liner is in contact with high temperature and high pressure gas, and the piston ring is in high-speed reciprocating motion on its surface, which determines that the cylinder liner must not only have sufficient strength and rigidity, but also must be resistant to high temperature, corrosion and wear.

Bimetal cylinder liner is one of the most widely used and most used parts of hydraulic end of mud pump. The bimetallic cylinder liner combines the advantages of hot forging high wear jacket and high chromium wear and corrosion resistance inner jacket. The outer coat is formed by hot pressing of high-quality carbon steel and the inner coat is cast by centrifugal casting of high chromium cast iron. The outer coat has a tensile strength of more than 900,000 psi, and the inner coat has a hardness of more than HRC62 after heat treatment, which can withstand 7,000 psi mud pressure. Its inner surface is smooth as a mirror, the inner hole size tolerance is strict, and the normal service life can reach more than 800 hours.

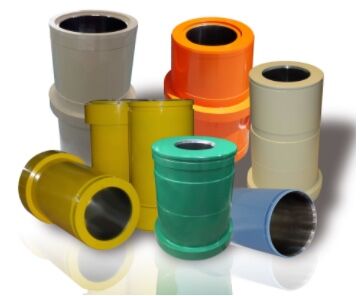

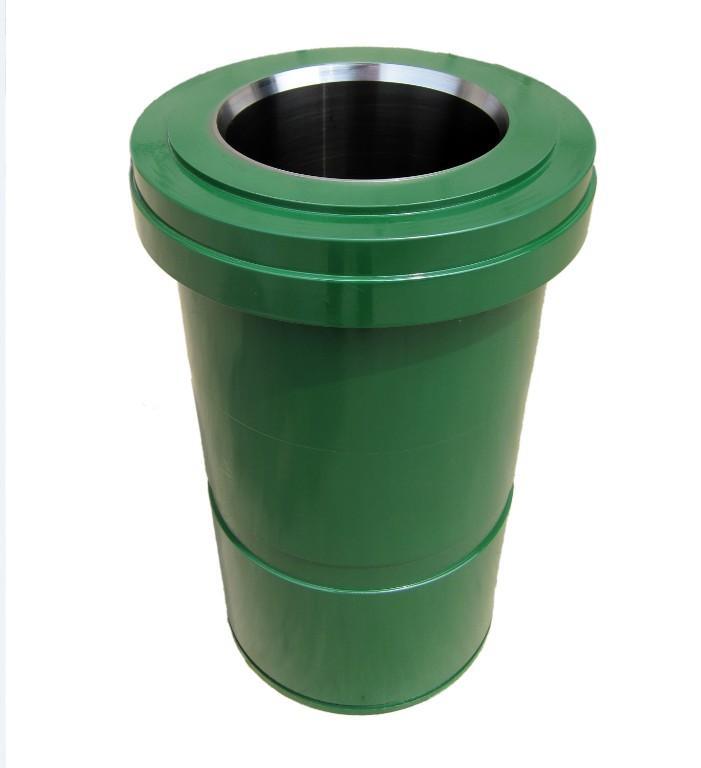

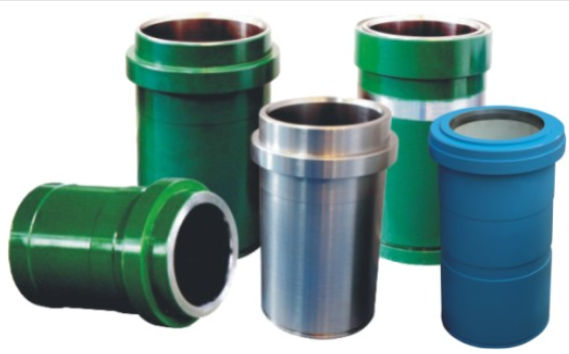

Bi-metal Mud Pump Liner combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a high chrome inner sleeve.
Ceramic Mud Pump Liner combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve.
